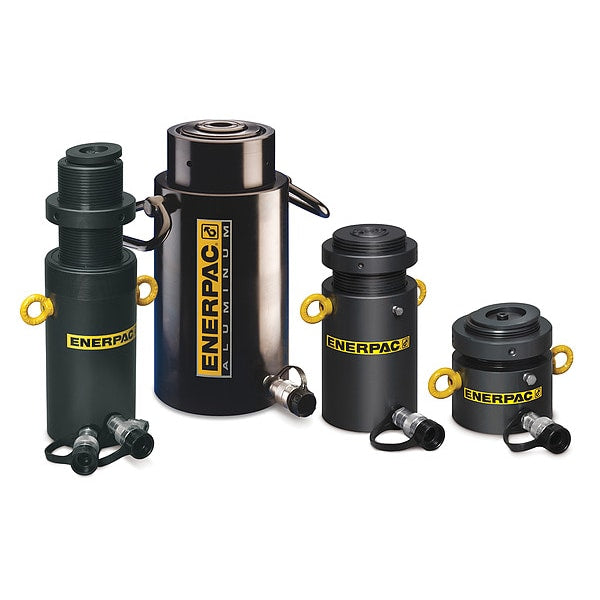

Home / HCR10012, 113 ton Capacity, 11.81 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR10012, 113 ton Capacity, 11.81 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR10012, 113 ton Capacity, 11.81 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

HCR10012, 113 ton Capacity, 11.81 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 100 ton, Stroke Length 11 3/4 in, Nominal Stroke Length 12 in, Effective Push Area 22.19 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 262.05 cu in, Retracted Height 18.86 in, Extended Height 30.7 in, Outside Dia. 6.89 in, Plunger Dia. 3.74 in, Base Mounting Thread Size M12, Weight 161 lb, Series HCR, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 5.31 in

    graingerSKU: 55PP29, mscSKU: , zoro_no: G5520795, mongo_id: 65bbe8e822d7a989a9922e5d

Web Price
$8,154.99 / each
Qty

Product Details

Lift, Lower, Push
M12
Steel
5.31 in
China
100 tons
High Cycle
22.19 sq in
779 mm
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Steel
10,150 psi
100 ton
12 in
Advance: 262.05 cu in; Retract: 132.28 cu in
262.05 cu in
6.89 in
1
3.74 in
Not eligible for promotion
479 mm
HCR
Double Acting
300 mm
161 lb
