Home / HCR1006, 113 ton Capacity, 5.91 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

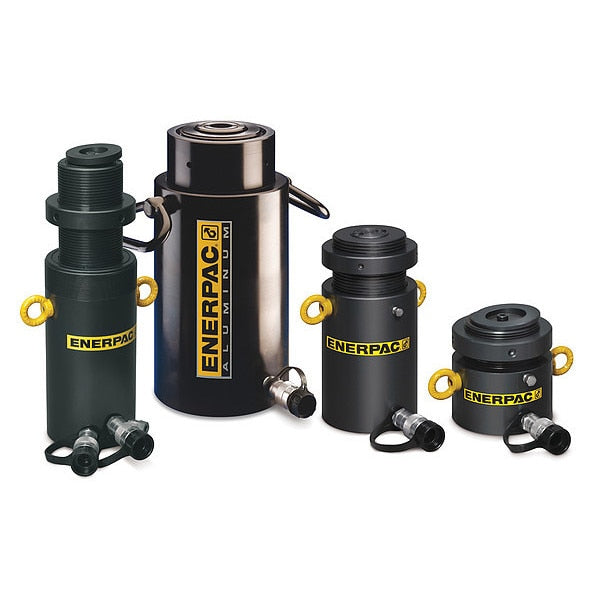

HCR1006, 113 ton Capacity, 5.91 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR1006, 113 ton Capacity, 5.91 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

HCR1006, 113 ton Capacity, 5.91 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 100 ton, Stroke Length 5 7/8 in, Nominal Stroke Length 7 in, Effective Push Area 22.19 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 131.02 cu in, Retracted Height 11.89 in, Extended Height 17.8 in, Outside Dia. 6.89 in, Plunger Dia. 3.74 in, Base Mounting Thread Size M12, Weight 105 lb, Series HCR, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 5.31 in

    graingerSKU: 55PP32, mscSKU: , zoro_no: G5526718, mongo_id: 65bbea4122d7a989a99a400a

Web Price
$6,376.24 / each
Qty

Product Details

Lift, Lower, Push
M12
Steel
5.31 in
China
100 tons
High Cycle
22.19 sq in
452 mm
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Steel
10,150 psi
100 ton
7 in
Advance: 131.02 cu in; Retract: 66.14 cu in
131.02 cu in
6.89 in
1
3.74 in
Not eligible for promotion
302 mm
HCR
Double Acting
150 mm
105 lb
