Home / HCR2004, 223 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

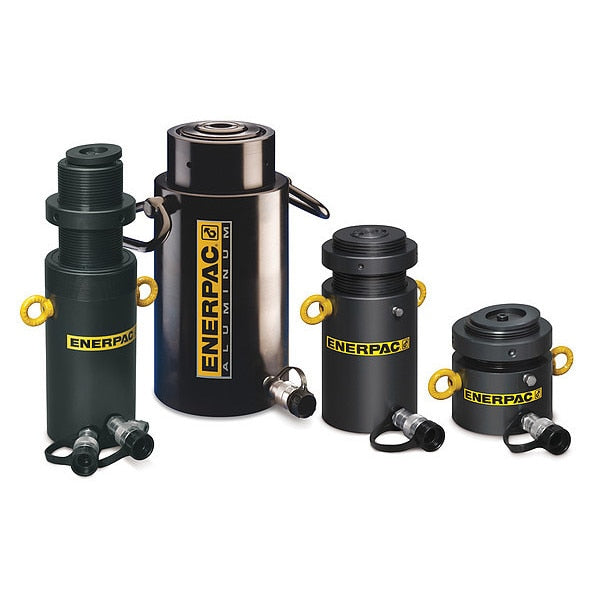

HCR2004, 223 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR2004, 223 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR2004, 223 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

HCR2004, 223 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 200 ton, Stroke Length 3 7/8 in, Nominal Stroke Length 5 in, Effective Push Area 43.95 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 173.02 cu in, Retracted Height 11.06 in, Extended Height 15 in, Outside Dia. 9.84 in, Plunger Dia. 5.51 in, Base Mounting Thread Size M12, Weight 212 lb, Series HCR, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 7.48 in

    graingerSKU: 55PP42, mscSKU: , zoro_no: G5526964, mongo_id: 65bbe9c522d7a989a997900a

Web Price
$8,808.74 / each
Qty

Product Details

Lift, Lower, Push
M12
Steel
7.48 in
China
200 tons
High Cycle
43.95 sq in
381 mm
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Steel
10,150 psi
200 ton
5 in
Advance: 173.02 cu in; Retract: 79.08 cu in
173.02 cu in
9.84 in
1
5.51 in
Not eligible for promotion
281 mm
HCR
Double Acting
100 mm
212 lb
