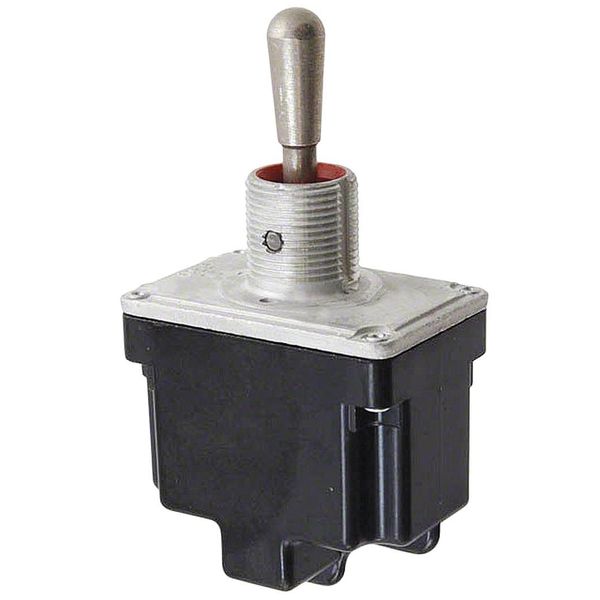

Toggle Switch ON-ON-ON DPDT 15A @ 277V Screw Terminals

Home / Toggle Switch ON-ON-ON DPDT 15A @ 277V Screw Terminals

Toggle Switch ON-ON-ON DPDT 15A @ 277V Screw Terminals

SKU
Brand Honeywell
Categories
Description Toggle Switch, Contact Form DPDT, Number of Connections 6, Switch Function On/On/On, AC Contact Rating 15A @ 277V AC, HP 1 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating 20A @ 28V DC, Actuator Style Standard Lever, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 0.470 in, Operating Temp. Range -85 Degrees to 160 Degrees F, Actuator Color Silver, Stem Color Silver, Special Features Step Base, Standards CE Approved, CSA Certified, UL Recognized

Web Price

$77.31 / each

Qty

Product Details

AC Contact Rating 15A @ 277V AC

Actuator Color Silver

Actuator Length 0.68 in

Actuator Style Standard Lever

Amps 10A @ 125VAC, 10A @ 250VAC, 15A @ 28VDC

Contact Form DPDT

Country of Origin (subject to change) United States

DC Contact Rating 20A @ 28V DC

HP_ 1 hp

Includes Thermoplastic Case

Mounting Hole 0.50 in dia

Number of Connections 6

Operating Temp. Range -85 Degrees to 160 Degrees F

Package Quantity 1

Recommended Use Aerial and Scissor Lifts, Agriculture and Material-Handling Equipment, Cranes and Construction, Factory-Floor Control Units, Machine Tool Equipment Manufacturers, Truck Mounted Tele-Handlers

Special Features Step Base

Standards CE Approved, CSA Certified, UL Recognized

Stem Color Silver

Stem Dia. and Thread Size 0.470 in

Stem Length 0.47 in

Switch Function Maintained On/Maintained On/Maintained On

Terminals Screw
