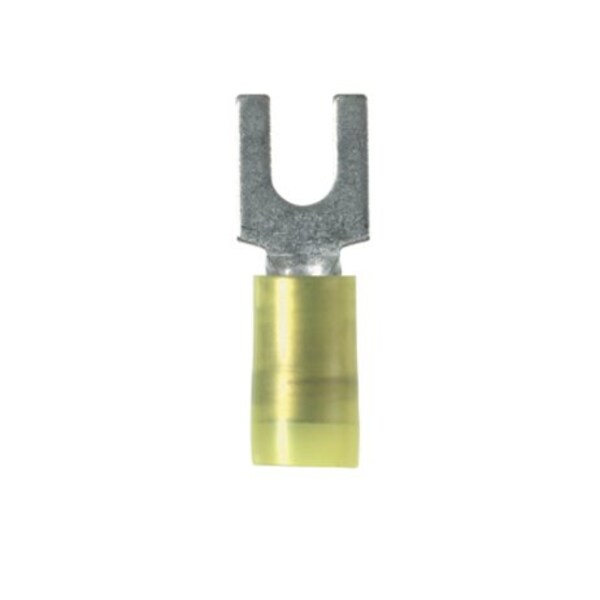

12-10 AWG Nylon Fork Terminal #8 Stud PK500

Home / 12-10 AWG Nylon Fork Terminal #8 Stud PK500

12-10 AWG Nylon Fork Terminal #8 Stud PK500

SKU
Brand Panduit
Categories
Description Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Yellow, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size #8, Termination Style Crimp, Tongue Length 0.52 in, Seam Style Grip Sleeved, Standards CSA Certified, UL 587-H, UL Listed, Barrel Length 0.52 in, Barrel Style Insulation Grip, Compatible Grainger Part Number 376U11, 38YU61
graingerSKU: 39AZ56, mscSKU: , zoro_no: G0287351, mongo_id: 65bbe8979a749db82279eb3d

Web Price

$252.49 / each

Qty

Product Details

Barrel Length 0.52 in

Barrel Style Insulation Grip

Compatible Manufacturer Model Number CT-100, CT-1550, CT-1551

Compatible with Product Type Crimp Tool, Crimper

Compatible with Series CT

Connection Material Copper

Connection Type Crimp

Contact Finish Tin

Contact Material Copper

Country of Origin (subject to change) Mexico

Features Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener

For Wire Size 10 AWG, 12 AWG

Insulation Color Yellow

Insulation Material Nylon

Insulation Type Nylon

Material Nylon, Copper

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Operating Temperature 221 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 10 AWG

Minimum Wire Size 12 AWG

Overall Length 1.03 in

Package Quantity 500

Seam Grip Sleeved

Seam Style Grip Sleeved

Special Features Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications

Standards CSA Certified, UL 587-H, UL Listed

Strip Length 1/4 in

Stud Size #8

Terminal Connection Crimp

Terminal Shape Standard Fork

Terminal Type Standard

Termination Crimp Termination Only

Termination Style Crimp

Tongue Length 0.51 - 1.00 inches

Tongue Thickness 0.04 in

Tongue Width 0.37 in

Tongue Width - Wire Connector 0.37 in
