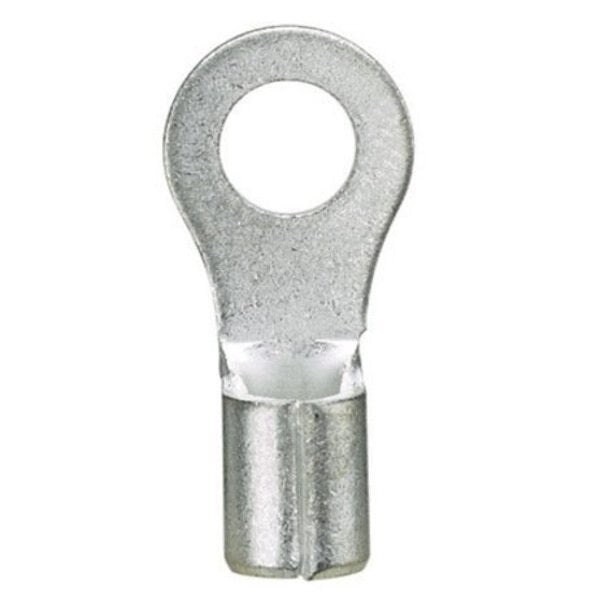

22-16 AWG Non-Insulated Ring Terminal #6 Stud PK1000
22-16 AWG Non-Insulated Ring Terminal #6 Stud PK1000

22-16 AWG Non-Insulated Ring Terminal #6 Stud PK1000

  • Panduit
  • Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Termination Style Crimp, Tongue Width 0.25 in, Contact Finish Tin, Contact Material Copper, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Inside Diameter 0.07 in, Barrel Length 0.25 in, Barrel Outside Diameter 0.25 in, Barrel Style Serrated Barrel

    graingerSKU: 39AZ17, mscSKU: , zoro_no: G0287695, mongo_id: 65bbe9bf22d7a989a99754c5

Web Price
$198.74 / each
Qty

Product Details

0.07 in
0.25 in
0.25 in
Serrated Barrel
CT-100, CT-100A, CT-1570, CT-160, CT-200, CT-2500, CT-260, CT-570, CT-600-A
Copper
Crimp
Tin
Copper
Mexico
16 AWG, 18 AWG, 20 AWG, 22 AWG
22 AWG to 16 AWG
Does Not Contain PVC
0.15 in
None
Bare
None
None
Non-Insulated
302 Degrees F
2,000 V
302 Degrees F
2,000 V
16 AWG
221 Degrees F
22 AWG
0.62 in
1000
0.00 - 0.25 inches
Brazed
Brazed
Ring Tongue Design Assures a Secure Connection in High Vibration Applications
CSA C22.2 No. 65, UL 486A, UL 486B
1/4 in
#6
Crimp
Ring Terminal
Crimp Termination Only
Crimp
0.03 in
0.25 in
0.62 in
UL 486A-486B
22 to 16 AWG
