Home / Male Rod End, LH, 1/2-20
Male Rod End, LH, 1/2-20
Male Rod End, LH, 1/2-20

Male Rod End, LH, 1/2-20

  • Qa1
  • Raw Materials

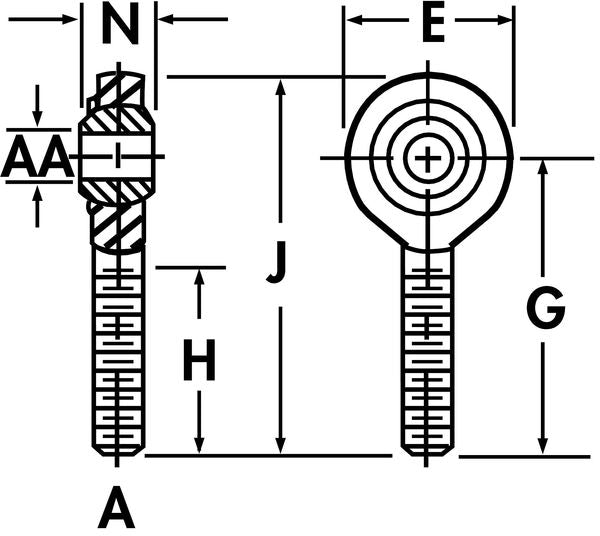

  • Spherical Rod End, System of Measurement Inch, Bore Diameter 1/2 in, Head Outside Diameter 1 1/4 in, Head Width 0.453 in, Shank Thread Length 1 1/2 in, Shank Thread Size 1/2 In.-20, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.937 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.625 in, Maximum Ball Swivel 20 Degrees

    graingerSKU: 20F986, mscSKU: , zoro_no: G5201646, mongo_id: 65bbe7983aaddbd5a90a3964

Web Price
$8.49 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.937 in
Alloy Steel
52100
52100 Steel Spherical Ball
1/2 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
1/2-20
0.500/0.502 in
1.312 in
2.438 in
1.5 in
3.094 in
0.625 in
1 1/4 in
0.453 in
Carbon Steel
Carbon Steel
Chrome Plated
0.625 in
0.500/0.502 in
20 Degrees
20 Degrees
3 1/16 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Male
1 1/2 in
1/2-20
Male Plain
ISO Certified 9001
10,046 lb
10,046 lbf
Inch
Left Hand
1/2-20
Male Plain
