Home / Male, SS/PTFE Race Rod End, LH, 16/16.065mm
Male, SS/PTFE Race Rod End, LH, 16/16.065mm
Male, SS/PTFE Race Rod End, LH, 16/16.065mm

Male, SS/PTFE Race Rod End, LH, 16/16.065mm

  • Qa1
  • Raw Materials

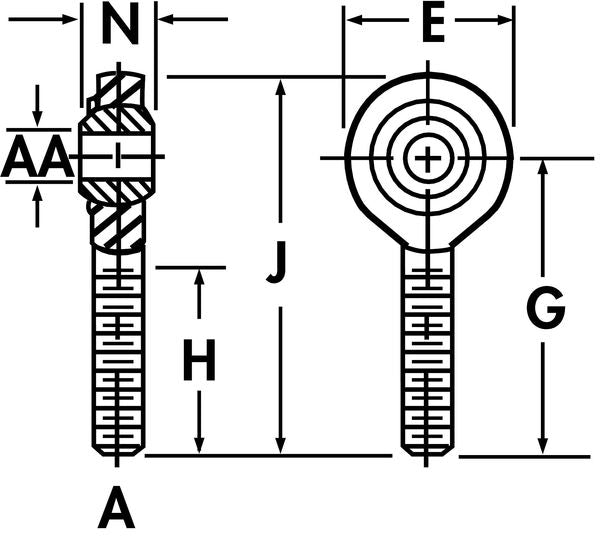

  • Spherical Rod End, System of Measurement Metric, Ball Stud Center Length 66 mm, Ball Stud Thread Length 40 mm, Ball Stud Thread Size M16-2.0, Bore Diameter 16 mm, Head Outside Diameter 38 mm, Head Width 12.75 mm, Shank Thread Length 40 mm, Shank Thread Size M16-2.0, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 28.58 mm, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.065/-0.012 mm

    graingerSKU: 39N507, mscSKU: , zoro_no: G5683623, mongo_id: 65bbe7983aaddbd5a90a395d

Web Price
$76.49 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
28.58 mm
Stainless Steel
440C
66 mm
40 mm
M16-2.0
440C SS Spherical Ball
16 mm
+0.065/-0.012 mm
Follows SAE Specification J1120
China
M16 x 2.0
16/16.065mm
38mm
66mm
40mm
85mm
21mm
Caustic
38 mm
12.75 mm
300 Series Stainless Steel
Stainless Steel
16/16.065mm
33 Degrees
33 Degrees
1
PTFE
Corrosion Resistant
Yes
Left Hand
Male
40 mm
M16-2.0
WBENC
25,162 N
25,162 N
Metric
Left Hand
M16 x 2.0
Male Plain
